With the development of industrial technology, pure handwork can no longer meet market demands. Spraying has evolved from manual to industrial automation, with increasing automation levels. Consequently, spraying production lines are becoming more widely applied across many areas of the national economy.
| 1 |

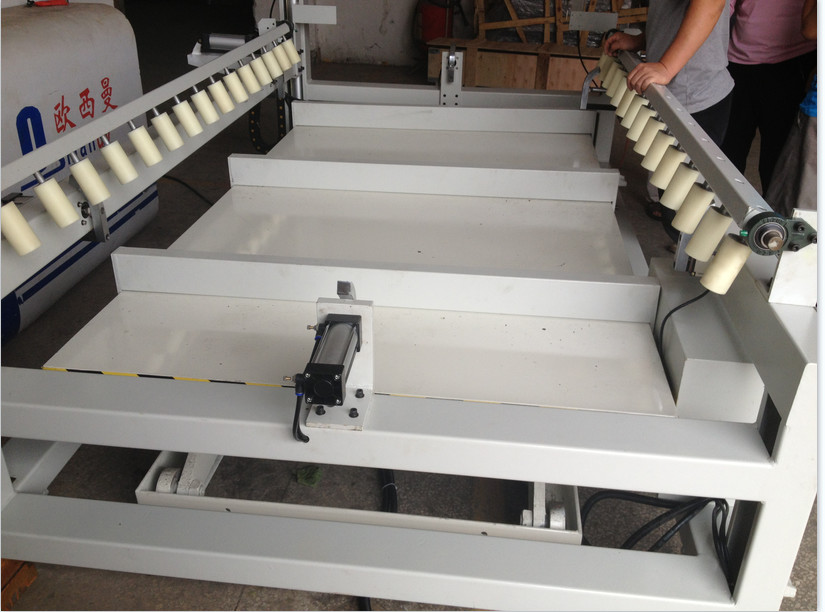

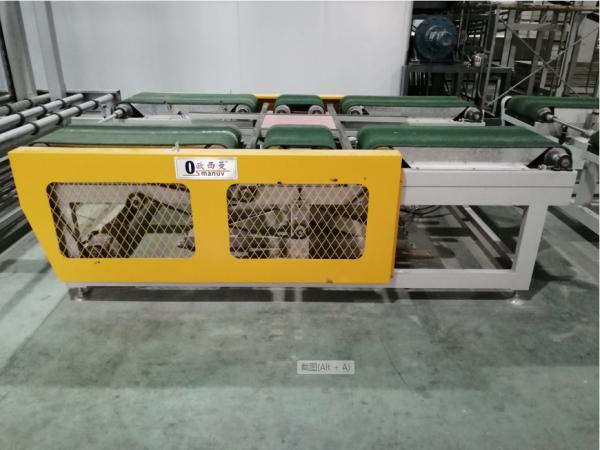

Product Name: Automatic blanking machine |
| 2 |
Model: OSM-TB-1320T type |
| 3 |
Features: Suitable for conveying and unloading work pieces for flow operations such as 1.22*2.44 calcium silicate board, cement pressure board and similar materials |
| 4 |
Mechanical Size: 1800mm length × 1220mm width × 850mm height, one set (Customizable according to actual needs) |
| 5 |
Power Supply Voltage: 220V, 50HZ, three-phase five-wire system |
| 6 |
Power: 3.75KW |
| 7 |
Power System: Divided into transmission power (roller transmission) and cylinder rapid expansion/contraction push plate power |
| 8 |
When automatically started, the hydraulic press reaches the bottom and begins working automatically at the designated position; manual control switch available when needed for convenient exchange operation |
| 9 |
Photoelectric: Equipped with Omron photoelectric system to automatically identify plates |
| 10 |
Working Height: 850mm-900mm (belt height from ground), roller height equipped with position indicator |
| 11 |
Material: Shell made by bending and welding 1.5mm cold-rolled plates, surface treated with electrostatic powder paint, equipped with adjustable foot cups for sturdy durability |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production fully complies with GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
