920mm Width Double Roll UV Coater Machine For Wall / Board

Brand Name : Osmanuv

Model Number : OSM-GS-920 type

Certification : ISO9001 And CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T,Western Union

Delivery Time : 35-45 Working days

Packaging Details : Wooden Box

Supply Ability : According to customer's demand

Product Name : Double roll coating machine

Color : Computer white / Green / Blue

Effecive width : 920mm

Coating Roll : Silicone Rollet

Power : 10 KW

Weight : 1500KG

Contact Now

920mm Width Double Roll UV Coater Machine For Wall / Board

UV Coating Machine UV Coater Machine Supplier For Wall or Board Double Roll Coating roller

The design of the process layout of the coating equipment is of vital importance to the use of the coating production line. If the coating equipment process layout is improper, even if the individual equipment is made well, the entire coating production line will not be easy to use.

Product Specifications
Specification Details
Product Name Color changing machine
Model OSM-GS-920 type
Mechanical Size 2000mm long × 1800mm wide × 1520mm high
Effective Working Size Width: 920mm, Thickness: 2-80mm, Minimum Length: 300mm
Conveying Speed 5-20m/min
Key Features
  • Widely used for primer and topcoat coating of flat wood, MDF, aluminum, panel furniture, PVC panels, etc.
  • Produces uniform surface color without ripples or stripes, achieving mirror-like brightness
  • Shell made from 1.5mm cold-rolled plates with liquid paint surface treatment
  • Frame constructed from 100×50mm channel steel with 20cm A3 steel plate supporting wall
  • Dual lifting roller coating systems with mechanical and pneumatic control methods
  • High-quality Japanese polyurethane coating rollers with customizable hardness (30-50 degrees)
  • Precision measurement wheels with runout less than 0.05mm
  • Laser rollers with electroplated hard chrome surface for optimal results
  • Wear-resistant conveyor rollers with good flexibility and solvent resistance
  • Aluminum alloy scraper holder with Swedish imported stainless steel blades
  • Independent hollow deceleration motor for each roller with Delta frequency converters
  • Comprehensive safety features including leakage circuit breaker and emergency switches
  • CE certified components including OMRON relays and CHNT contactors
Technical Components
  • Coating Roller: Diameter 205mm, length 1020mm, Japanese polyurethane
  • Measurement Wheel: Diameter 130mm, length 1020mm, 45# seamless steel pipe
  • Laser Roller: Diameter 150mm, length 1020mm, 45# structure with hard chrome plating
  • Conveyor Roller: Diameter 130mm, length 920mm, Japanese rubber
  • Control System: 4 sets of hollow worm gear reducers and frequency converters
  • Power System: Independent motors for each roller with forward/reverse adjustment

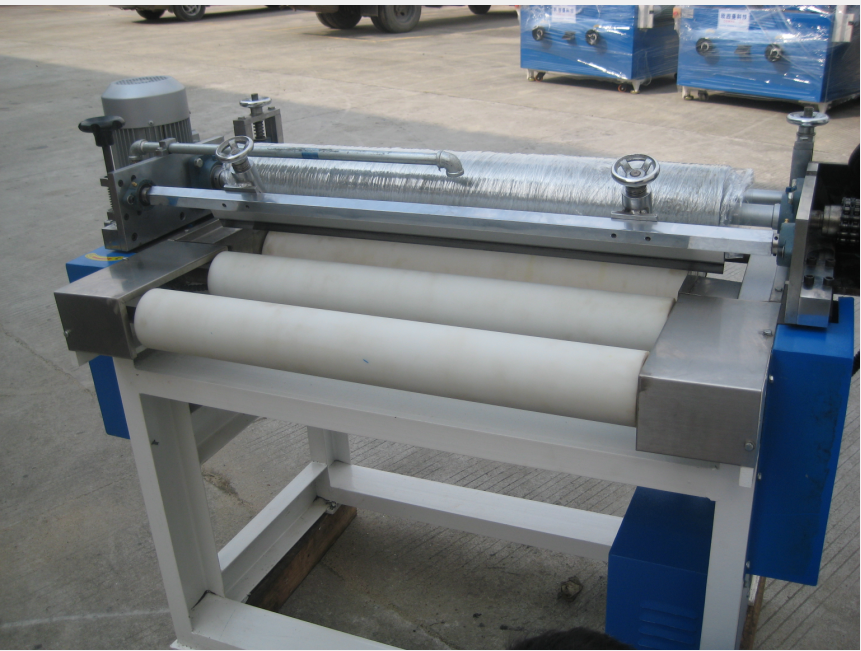

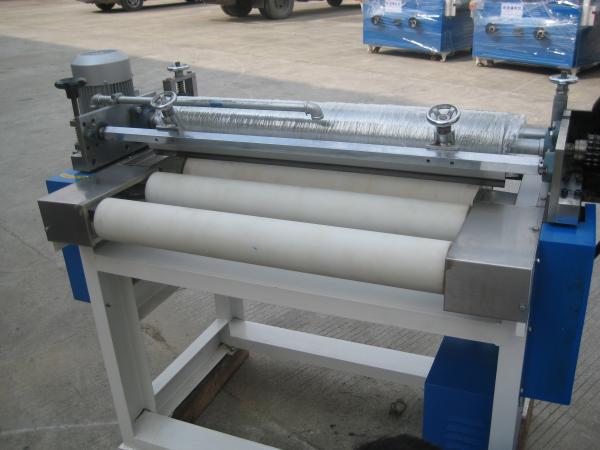

920mm Width Double Roll UV Coater Machine For Wall / Board 920mm Width Double Roll UV Coater Machine For Wall / Board
Frequently Asked Questions
Are you trading company or manufacturer?
We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We will test your samples on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
