ISO9001 3mm Thick Full Precision Coating Machine Computer White

Brand Name : Osmanuv

Model Number : OSM-GT-1320-Ⅱ

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Delivery Time : 35-45 Working days

Payment Terms : T/T,Western Union

Packaging Details : Wooden Box

Certification : ISO9001 And CE

Supply Ability : According to customer's demand

Product Name : Full precision coating machine (both positive and reversible)

Color : Computer White + Grass Green

Size : 2200mm long x 2300mm wide x 1520mm high. (According to actual size)

Feature : Features: It is suitable for all kinds of panel furniture, calcium silicate board, glass magnesium board, cement fiber board and other flat coatings. The surface of the paint processed by this machine is smooth, full and no color difference.

Effective working size : a, effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm

Material : The shell is made of 1.5mm steel plate by bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).

Contact Now

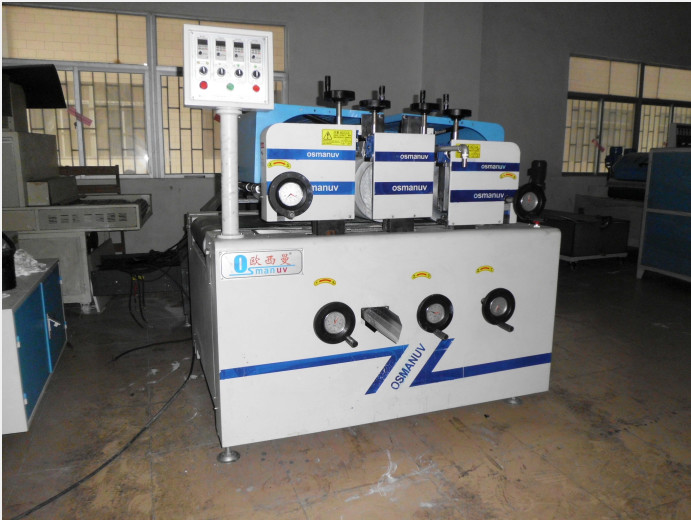

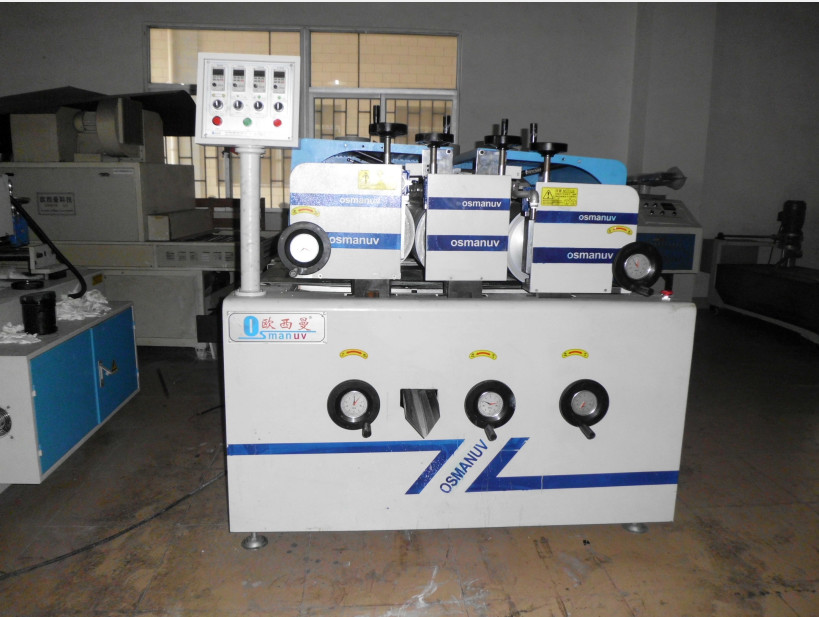

ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
Product Description
Suitable for all kinds of board furniture, calcium silicate board, glass magnesium board, cement fiberboard and other plane coatings. The surface of the paint treated by this machine is smooth, with good plumpness and no color difference.
Technical Specifications
1 Mechanical Dimension 2200mm long × 2300mm wide × 1520mm high (Subject to actual size)
2 Effective Working Size a. Effective width: 1320mm
b. Thickness: 3-80mm
c. Length (shortest): 300mm
3 Material The shell is made of 1.5mm steel plate bending and welding, surface treated with liquid paint, and supporting wall made of 20cm steel plate (A3 material)
4 Coating Part Adopts two groups of rolling coating system, each group consists of steel roller and silica gel wheel, each group can be lifted up and down separately
5 Cots Diameter: ￠250mm, length: 1470mm, Japan quality silicone production, wear-resistant, good elasticity, hardness customizable (30-50 degrees), resistant to high quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed
6 Metering Wheel Diameter: ￠130mm, length: 1470mm, using 45# seamless steel tube by CO² welding, surface fine grinding, dynamic balance, runout less than 0.05mm, surface hard chrome plating and polishing for bright effect. Direct plug-in connection drive
7 Conveyor Roller Power: 1.5KW, diameter: ￠130mm, length: 1320mm. 45# seamless steel tube welded by CO², surface fine grinding, dynamic balance, runout less than 0.05mm, surface hard chrome plating and polishing for bright effect. Direct plug-in connection drive
8 Conveyor Belt Green PVC plane conveyor belt, smooth transportation and long service life
9 Transmission Speed 5-20m/min
10 Working Height 0-850mm (belt height from ground), roller height equipped with position display
11 Control System 5 sets of RV reducer and 5 sets of DTA frequency converter, each drum can be adjusted independently
12 Electrical Appliances Delta frequency converter, CHNT contactors, RV reducer, motor, famous domestic brands in line with international safety standards
13 Safety Device Leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards
14 Transfer Direction From left to right
ISO9001 3mm Thick Full Precision Coating Machine Computer White ISO9001 3mm Thick Full Precision Coating Machine Computer White
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide a video of the testing. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
